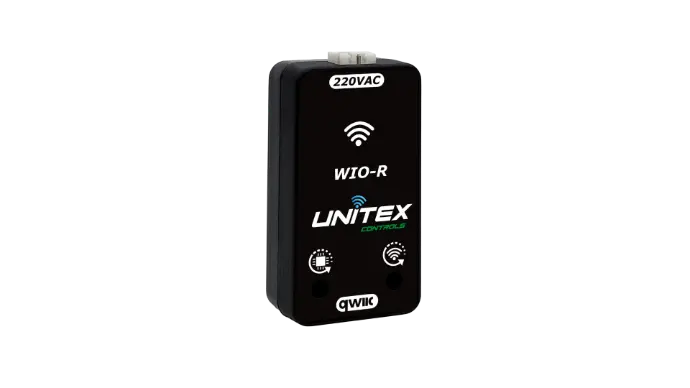

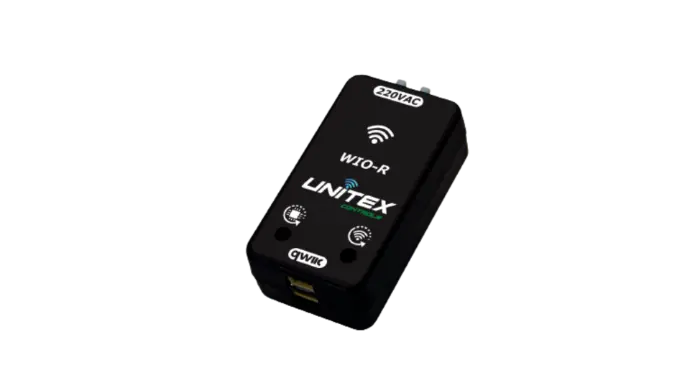

W-IOX Based on UnitexControls Wireless Input/Output Device with esp32-pico-d4 microprocessor adding to it the latest PCB Antenna Technology by Texas instrument for higher range, W-IOX basically share the data point to point by ESP-now protocol which is one of the fastest protocols in sharing the data wirelessly. W-IOX has been designed to create space in places where there is no space for wiring and cost saving since it gives a range of approximate 200 meters in open area and up-to 20 meters in extreme indoor environment area (2.4 GHz Wi-Fi Range + latest PCB Antenna Technology). W-IOX can connect to cloud via BLYNK server and gives the ability to monitor the connected points and do actions to it. Please note that W-IOX can bind with 3 different devices and can function as an extender automatically to send the received data to the right destination.

• ESP-NOW 2.4 GHz point-to-point communication (Wireless remote control).

• IoT cloud service via Blynk server (Mobile remote control).

• Analog output with two universal inputs (Type 1).

• Volt-free contact output with one input (Type 2).

• Additional triac output can be connected.

• Standard with LEDs.

• Standard with switches.

• Small and easy to hide.

• Easy to implement.

• Operating voltage: 24 VAC, 24 VDC, 220 VAC.
