The UX400 is a control and monitoring unit featuring a 4-inch high-resolution full touchscreen display for clear, intuitive operation. Designed to fit a wide range of automation needs, it offers powerful communication options and flexible I/O configurations. Whether used as a standalone screen controller or as part of a larger system with expansion modules, the UX400 adapts to your project requirements with ease.
• Display: 4" high-resolution full touchscreen for crisp visuals and responsive control
• Communication Protocols:
o Modbus TCP/IP
o Modbus RTU
o BACnet MSTP
o UnitexControls Wireless Protocol
• Connectivity:
o RS485 for Modbus RTU
o Wireless over IP for Modbus TCP/IP
o Built-in Wireless over 2.4 GHz for UnitexControls Protocol
• I/O Capabilities:
o Operates standalone with built-in digital and analog inputs/outputs for simple control needs

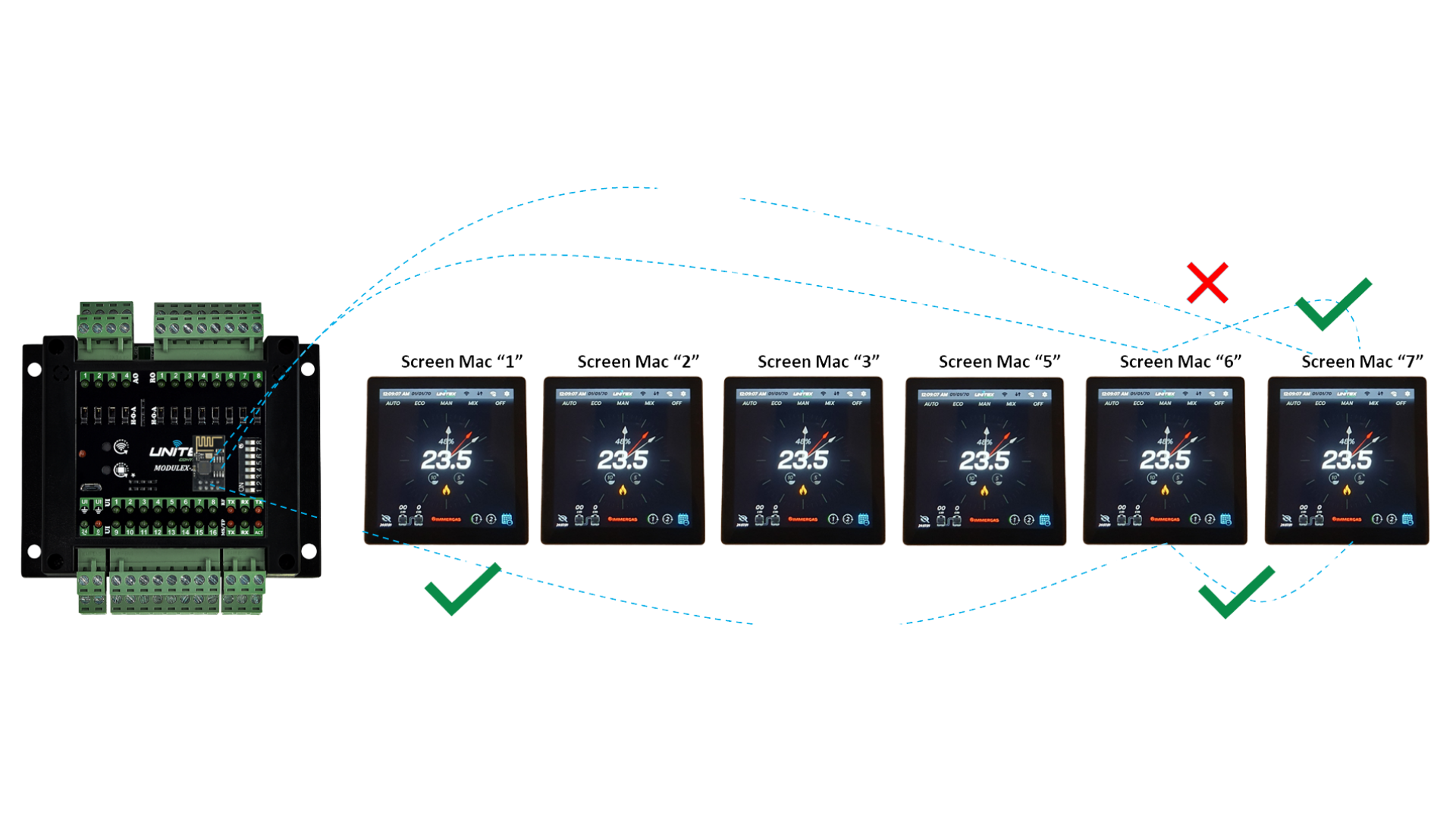

o Supports expansion modules (e.g., Modulex-28) for advanced and customized I/O configurations
• Cloud Integration: Optional cloud connectivity (e.g., ESP Rainmaker) available but not included by default
• Power Supply: 230V AC standard; 24V DC optional
• Form Factor: Designed to fit standard 86mm x 86mm (86Box) electrical mounting boxes
• Environment: Industrial-grade operating temperature range
• Applications:
o Underfloor Heating (UFH) Thermostat

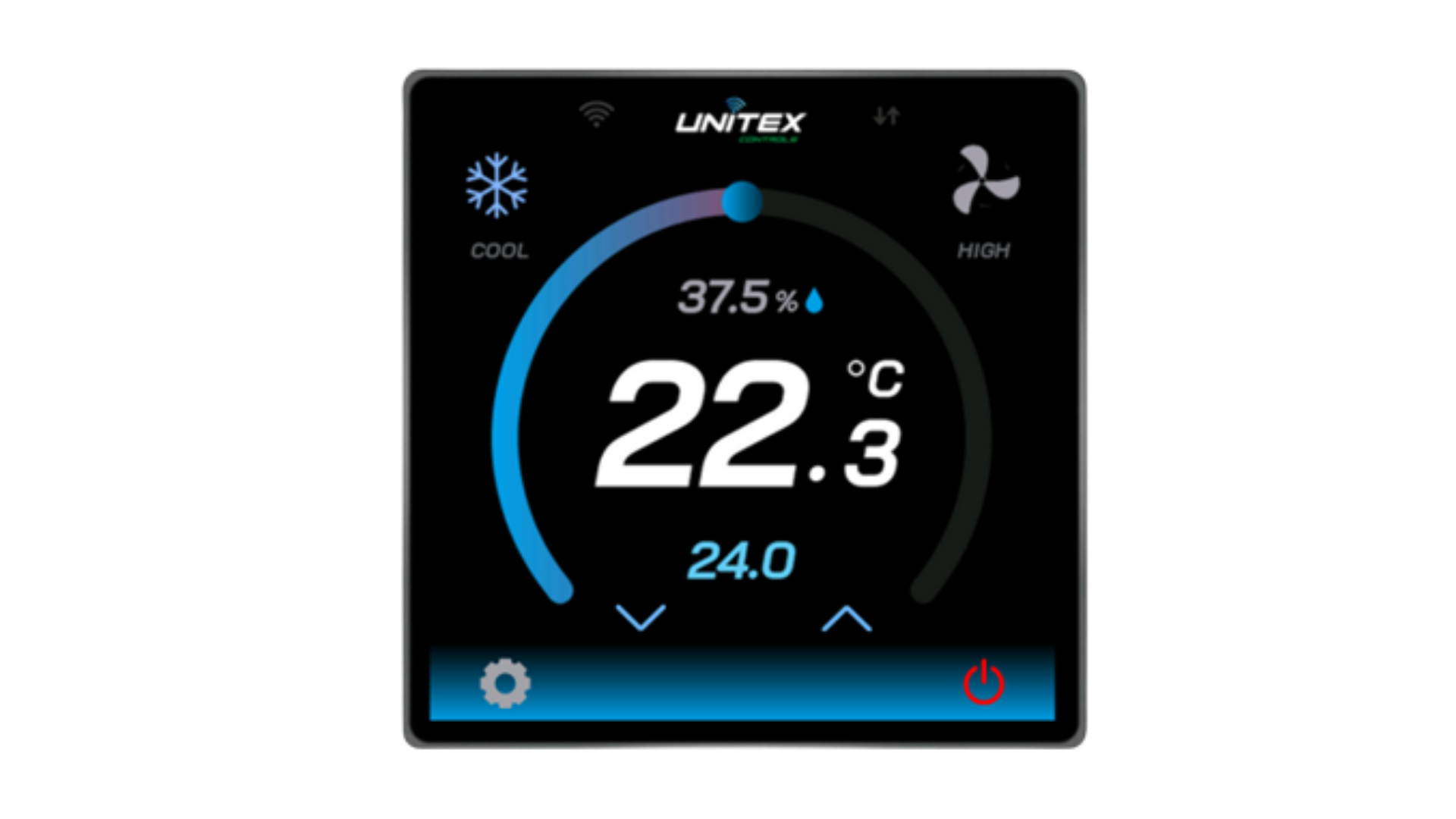

o Air Conditioning (AC) Thermostat
o Modbus-enabled Thermostat
o Standalone Thermostat Controller

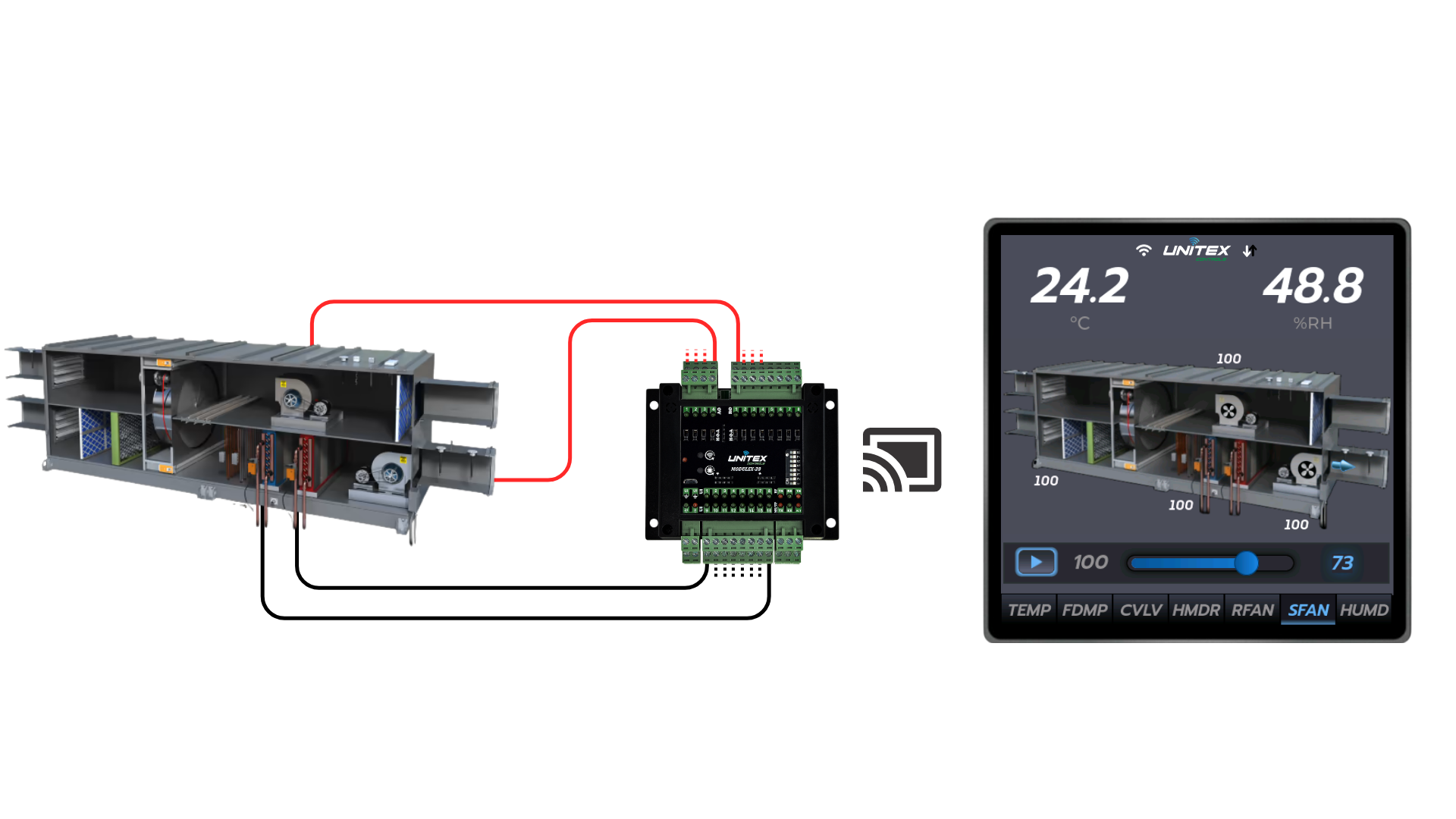

o Air Handling Unit (AHU) Monitoring HMI
o Water Level Management HMI
o On/Off Control for Lighting and Heating Blankets
