The UnitexControls Underfloor Heating (UFH) System Solution is a smart, wireless, and highly efficient heating control system designed for modern residential, commercial, and smart building projects.
At its core, the solution combines the Modulex-28 controller with the UX400 intelligent touchscreen thermostat to deliver exceptional comfort and precise control.
- Modulex-28: Manages all connected heating valves and the boiler, ensuring optimal heating performance. Supports DIN-rail or wall-mounted installation and operates at 24 VAC.
- UX400: High-resolution touchscreen thermostat with intelligent scheduling, powered by 220 VAC and compatible with 86 box wall mounting.
System Highlights:
- Heating valves and the boiler are wired directly to the Modulex-28.

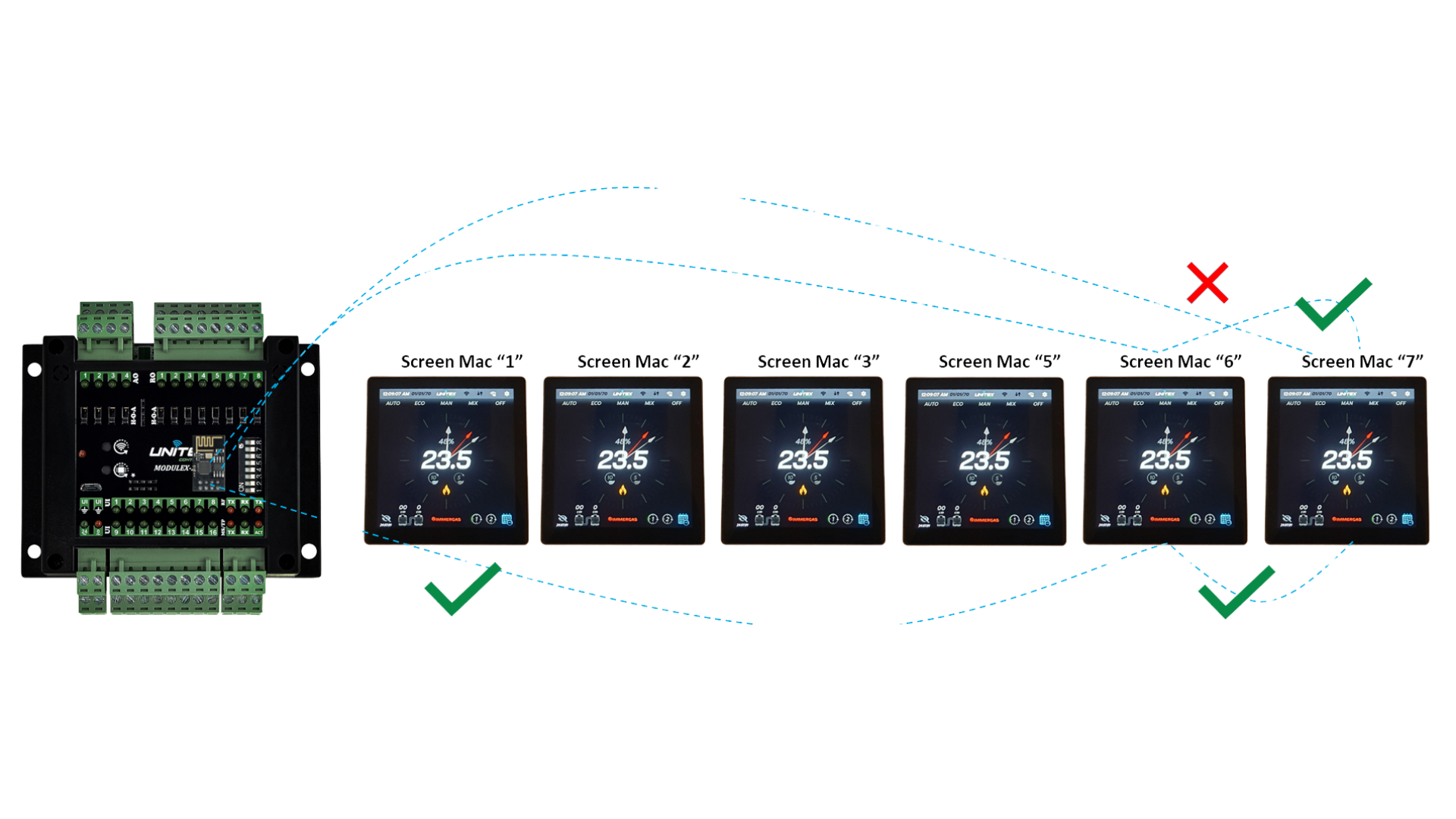

- Thermostats connect wirelessly to the Modulex-28 and to each other, forming a mesh network that extends communication range.
- One master thermostat centrally manages all connected thermostats, controlling Eco setpoints and modes (Auto / Eco / Manual / Mix / Off).
- Mix Mode gives individual users the ability to manage their own thermostat while still under master control.
Each thermostat supports two independent time schedules for tailored heating operation in each zone.
|
Specification |
Details |
|
Controller Model |
Modulex-28 |
|
Thermostat Model |
UX400 |
|
Controller Power Supply |
24 VAC |
|
Thermostat Power Supply |
220 VAC |
|
Mounting (Controller) |
DIN-rail or wall-mounted |
|
Mounting (Thermostat) |
86 box |
|
Wiring |
Valves and boiler connected to Modulex-28 via wiring |
|
Wireless Communication |
Unitex mesh network (thermostats act as extenders) |
|
Control Modes |
Auto / Eco / Manual / Mix / Off |
|
Scheduling |
Two independent time schedules per thermostat |
|
Integration |
Compatible with smart building and BMS applications |
