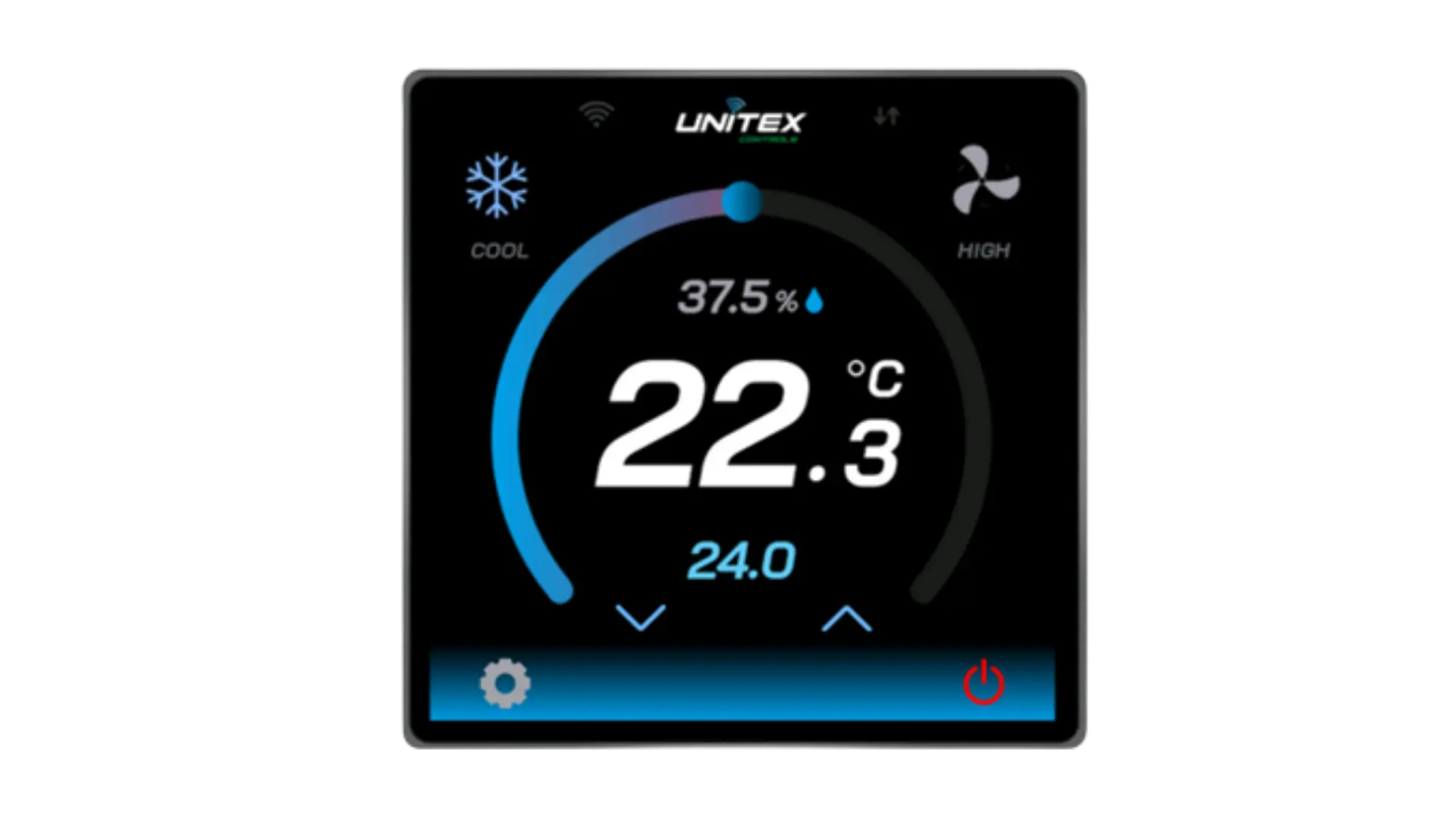

The UX400 is a versatile 4-inch high-resolution full touchscreen thermostat designed to adapt to diverse control needs. It can function as a Modbus slave thermostat, communicating temperature and status data to a master controller, or operate as a standalone thermostat managing local control independently. Additionally, the UX400 supports wireless data transmission to UnitexControls connected to Fan Coil Units (FCUs), providing flexible deployment options in building automation systems.

*Feature*	*Details*
*Display*	4" high-resolution full touchscreen for intuitive user interaction
*Operating Modes*	• Modbus Slave Thermostat (wired RS485 communication) • Standalone Thermostat (independent local control) • Wireless Thermostat (2.4 GHz Unitex Protocol transmitting to controllers managing FCUs)
*Communication Protocols*	• Modbus RTU (standard) • Modbus TCP/IP (optional, customizable based on order) • Unitex Wireless Protocol
*Connectivity*	RS485 wired, wireless over 2.4 GHz
*Applications*	HVAC control, Fan Coil Unit (FCU) management, underfloor heating, building automation
*Power Supply*	230V AC standard; 24V DC optional
*Mounting*	Designed for standard 86mm x 86mm (86Box) wall or panel mounting
*Customization*	Firmware and control logic adaptable for specific project requirements
